Cattleman's Gate

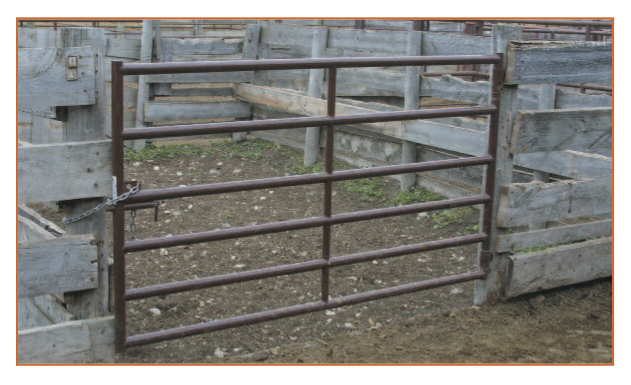

The Cattleman Gate combines features from each of HiQual's gate lines to provide the best of all worlds for feedlots, working corrals and exotic livestock.

While constructed of the same material as the Heavy Duty Gate, a sixth rail was added and the space reduced between the lower rails. An optional Plunger Latch makes this gate self-latching.

Available in 8', 10', 12', 14' & 16' lengths

Rail spacing
9 ⅜" top two spaces
7" bottom three spaces
Length refers to size of opening. The length of the gate is actually 5 ½" shorter. i.e.: 10' gate is actually 9' 6 ½"

Specifications

• Height:
       52"
• Posts:
       2" x 16 gauge round, capped with rubber plug
• Rails:
       6 - 2" x 16 gauge round
• Braces:
       1 ½" x 16 gauge round, notched & welded
• Chain:
       ¼" x 48" galvanized proof coil, with ¼" quick link
• Hinge: 1" x 14 3/4"
       1" x 14 ¾" adjustable bolt
• Paint:
       Baked on powder coat paint
• Weight (in pounds):
       8'-86, 10'-114, 12'-121, 14'-139, 16'-157
• Steel:
       High-tensile, 58,000 psi tubular steel
• Warranty:
       1 year

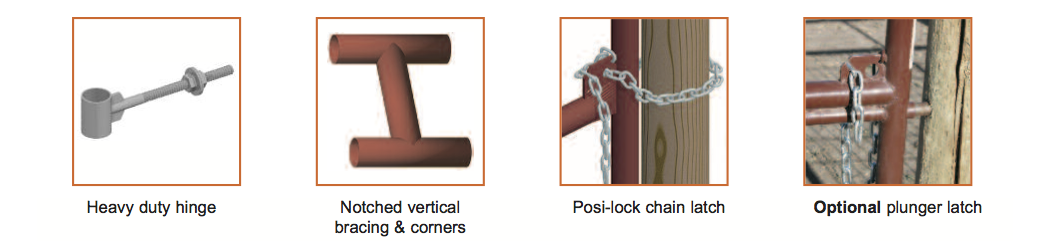

Highlighted Features & Advantages

• Square corners for livestock safety
• Narrower rail spacing for greater confinement
• Optional plunger latch for quick & easy operation
• Extra heavy hinges for years of heavy use
• Chains & latches for extra security
• 4" taller than Heavy Duty Gate

Suggested Applications

• Bull Pens
• Heavy confinement
• Feed lots
• Sale barns
• Calving barns


Resources:

Cattleman's Gate Info Sheet and Parts List
