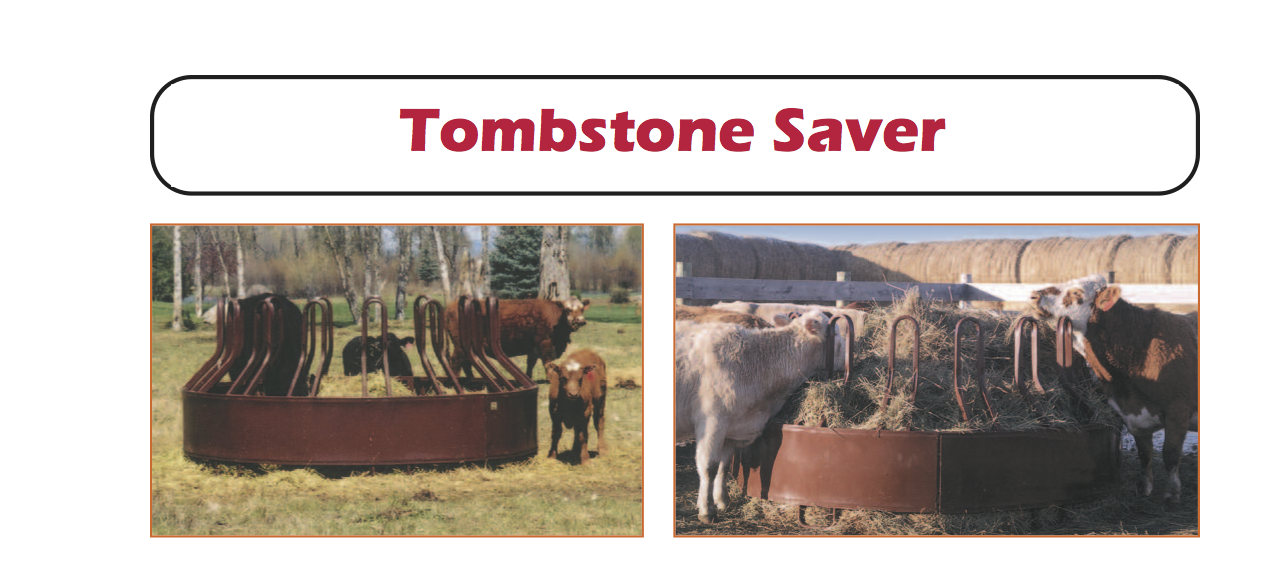

Tombstone Saver

Patented by HiQual in 1992 the Tombstone Saver represents a revolution in feeder engineering. The innovative, sloped-in tombstone design dramatically reduces feed waste, greatly extends the lifespan of the feeder and works equally well for cattle or horses. In a recent study by the University of Minnesota, the HiQual Tombstone Saver had the least amount of hay-wasted of all circular shaped feeders with a payback of only 4 months! You can't afford to not have a HiQual Tombstone feeder!

Specifications

• Height:
       54"

• Hoop Spacing:
       14 ½" (19 ¼" at connections)

• Sections:
       3
• Feeding Stations:
       15
• Diameter:
       Top ring: 7' 2" / Bottom ring: 9' 2"
• Hoops:
       1 ¼" x 2" x 16 gauge rectangular, 1010 carbon steel
• Sheeting:
       18" high x 16 gauge
• Frame:
       Top Tube: 1 ½" sq. x .100w, Bottom: 1 ½" x 16 gauge
• Legs:
       1 ¼" x 16 gauge round

• Weight (in pounds):
       359

• Paint:
       Baked on powder coat paint

• Warranty:
       1 year

Highlighted Features & Advantages

• Documented feed savings of 60 lbs. per 1000 lbs. fed

• Sloped-in hoops keep animals from pressuring the feeder and causing damage
• Open top eliminates neck rub and hair loss
• Accommodates for large bales
• Feeds up to 25 head
• Safe for animals
• Economical
• Replacement hoops available
• 3 sections for easy transport/storage

• Optional hinge kit

• Mud legs to keep feeder off the ground


Suggested Applications

• Cow/Calf operations

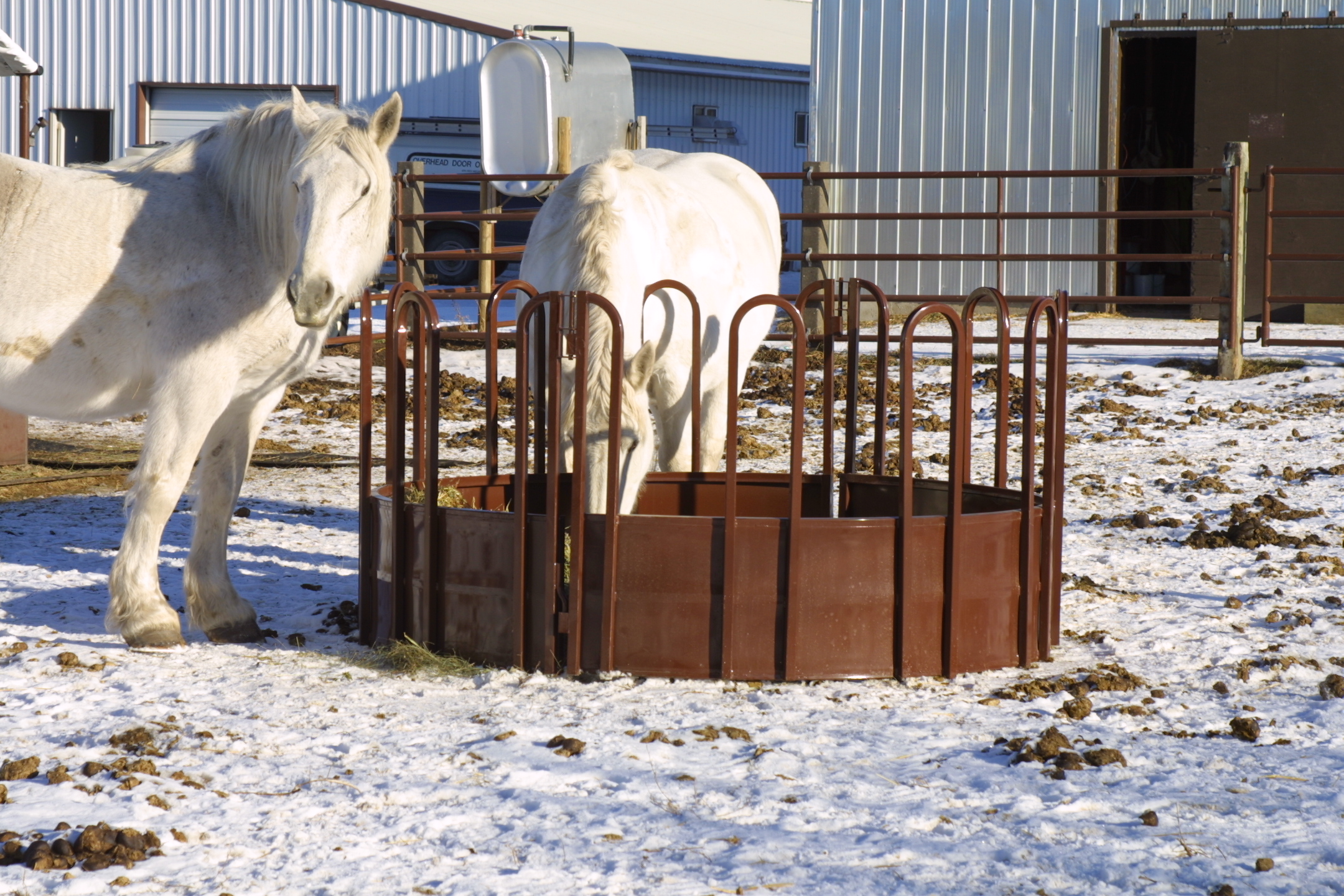

• Horses
• Diary cattle
• Horned Cattle



Resources:

Tombstone Saver
Info Sheet and Parts List
