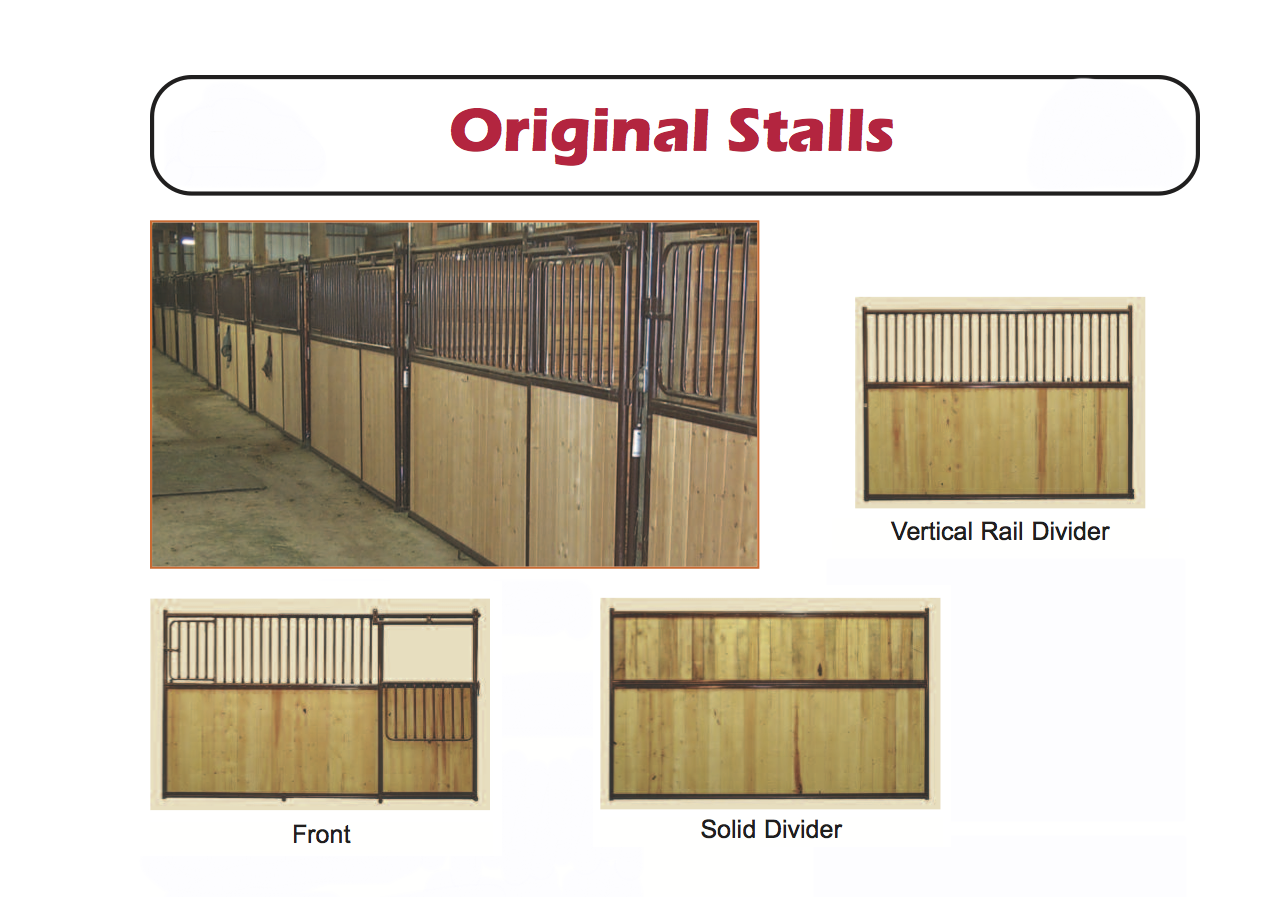

Original Stalls

First introduced more than 25 years ago, the Original Series Stalls remain a favorite of horse enthusiasts everywhere. Heavy duty 2' 14 gauge construction and HiQual's Powder Coat Paint finish provide both quality and durability.

Specifications

• Dimension:
       12': 140 ½" L x 2" W x 85" H
       10': 116 ½" L x 2" W x 85" H

• Materials:
       Frames: 2" x 14 gauge round
       Vertical Rails: 1" x 14 gauge round, 3" spacing
       Feed Door: 1" x 14 gauge round
• Weight (in pounds):
       Fronts: 10' - 230, 12' - 260
       Vertical Rail Divider: 10' - 160, 12' - 185
       Solid Divider: 10' - 135, 12' - 155

• Paint:
       Baked on powder coat paint
• Warranty:
       1 year


Connectors sold separately                     Lumber not included

Highlighted Features & Advantages

• Safe, heavy duty construction
• 4' stall door on aluminum rollers with bearings is quiet, rolls easily and does not rust
• Also available with door on reverse side
• Rolling door has large drop down grill
• Feed door hinges out for easy feeding
• Can be set up as a free standing box stall
• Wood easily inserts into track vertically


Resources:

Original Stalls Info Sheet, Parts List,
Lumber Requirements,
and Stall Connectors
