Range Panels

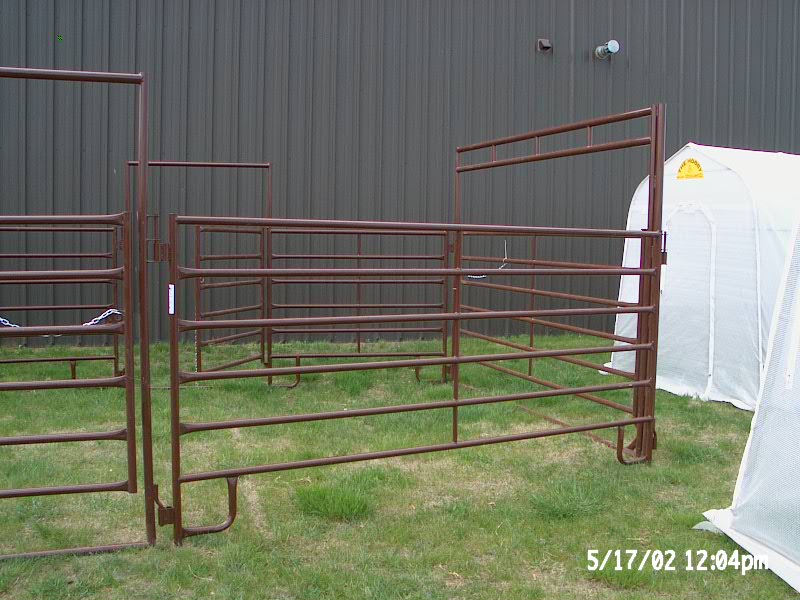

The Range Panel's unique oval tubing provides greater durability in a lighter weight panel. These all purpose panels are ideal for temporary stalls, perimeter fencing, roping arenas, pasture panels and light cattle confinement.

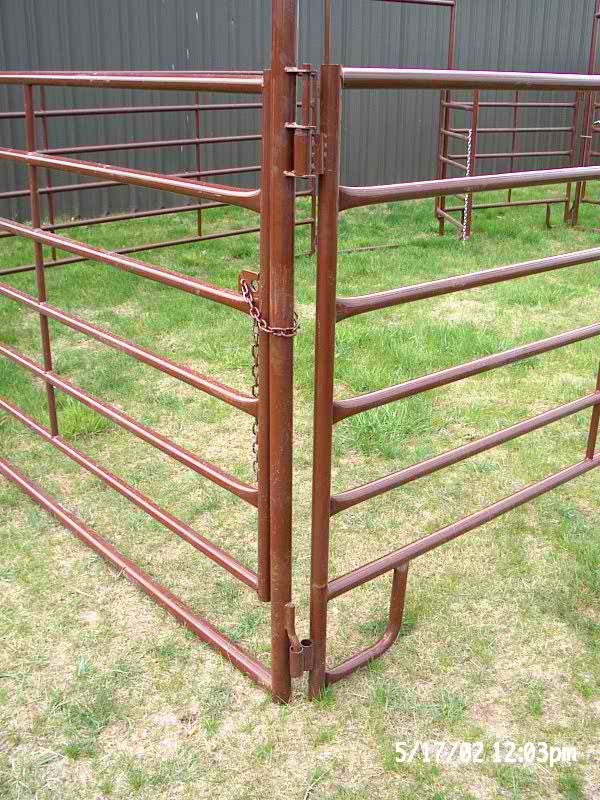

HiQual Range Panels feature a patented, wrap-around "U-Latch" connector making them ideal for use on uneven ground.

Available in 10', 12' & 16' lengths

Specifications

• Height:
       63"
• Posts:
       1 ⅛" x 1 ¾" x 16 gauge oval, capped with rubber plugs

• Rails:
       1 ⅛" x 1 ¾" x 16 gauge oval
• Braces:
       1" x 16 gauge round, notched & welded
• Rail Spacing:
       6 rails with 9 ¾" (top 2 spaces), 7 ½" (bottom 3 spaces)

• Connectors:
       Universal U-Latch

• Paint:
       Baked on powder coat paint

• Weight (in pounds):
       10' - 78, 12' - 90, 16' - 116

• Warranty:
       1 year

• Steel:
       High-tensile, 58,000 psi tubular steel


Highlighted Features & Advantages

• Secure, versatile connector is flexible on uneven ground
• Improved cattle flow with narrow bottom rail spacing
• Mud legs for added support & extended life
• Oval tubing provides increased strength with less material
• Notched vertical bracing for overall strength
• Square corners prevent animals' leg from slipping between panels


Suggested Applications

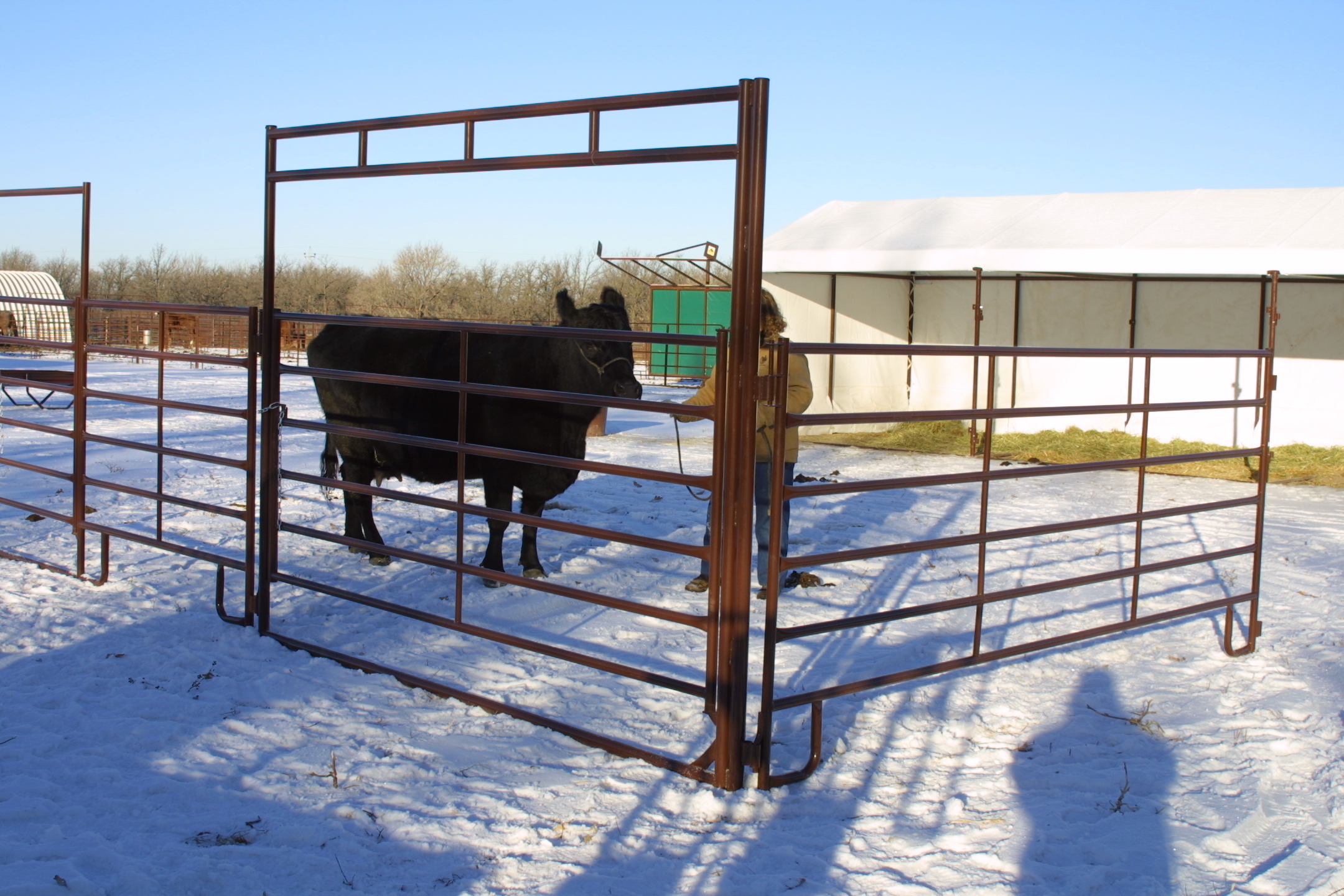

• Cattle and horses in light confinement

• Temporary stalls
• Perimeter fencing

• Roping arenas
• Round pens



Resources:

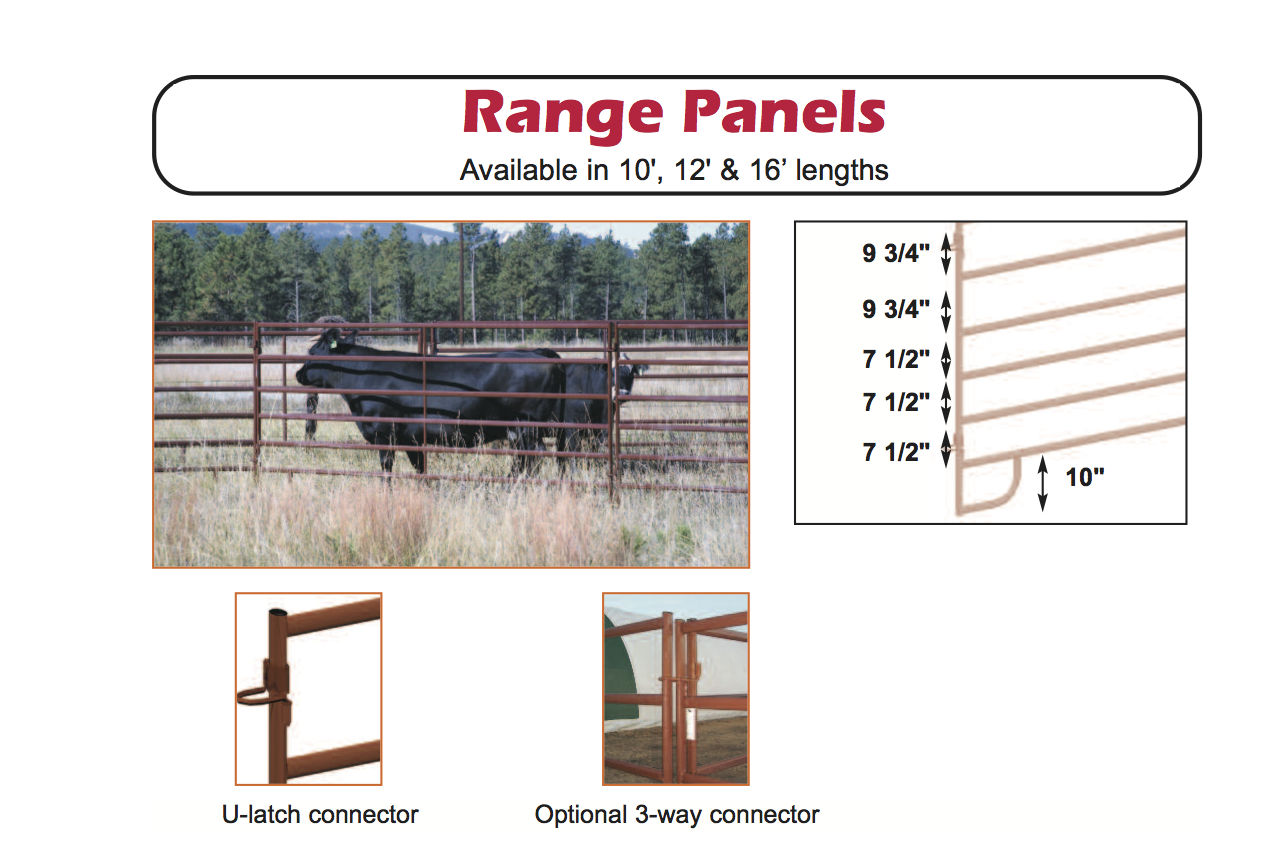

Range Panels Info Sheet
and Parts List
