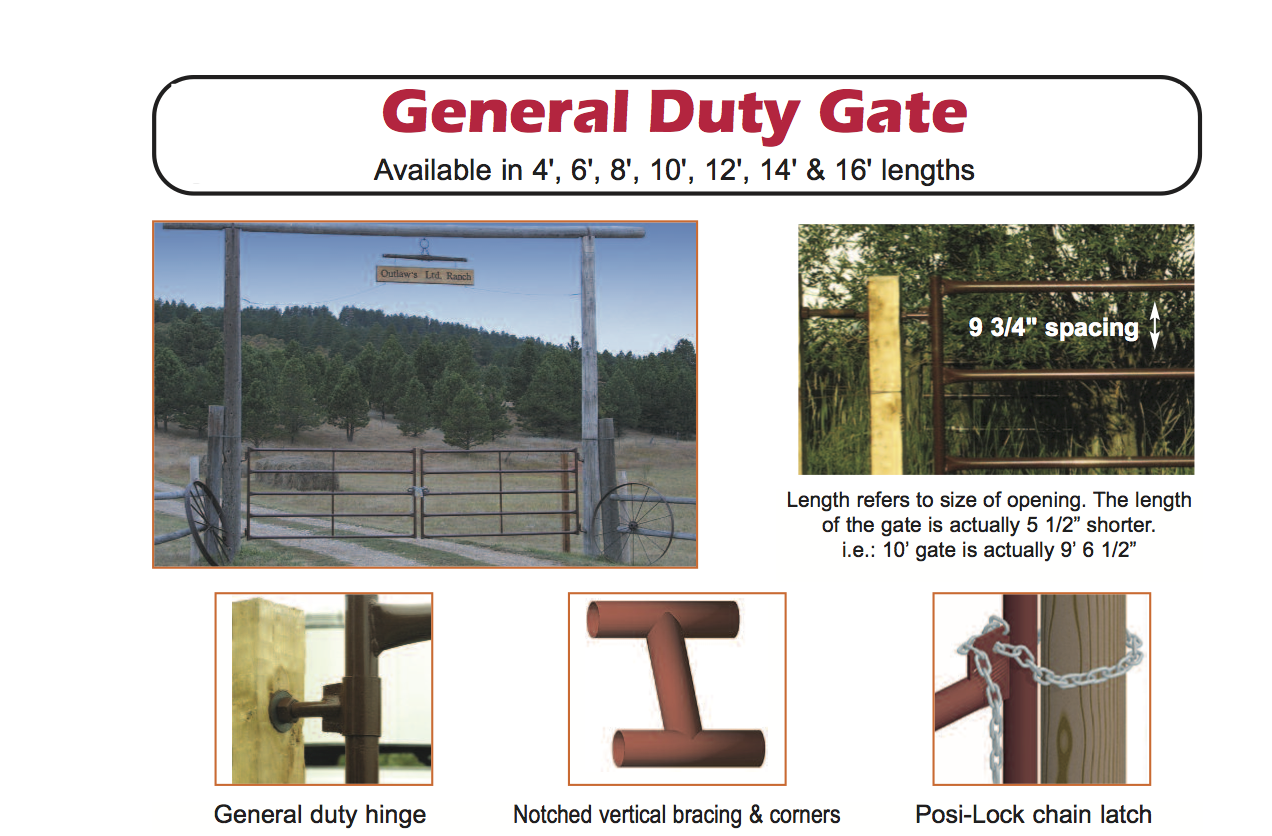

General Duty Gate

Designed for medium to light confinement, the General Duty Gate is comparable in strength to other more expensive 2" gates.

Regardless of the application, the quality and price make this gate a bargain!

Available in 4', 6', 8', 10', 12', 14' & 16' lengths

Specifications

• Height:
       48"
• Posts:
       1 ½" x 14 gauge round, capped with plastic plug
• Rails:
       5 - 1 ½" x 16 gauge round, with 9 ¾" spacing
• Braces:
       1 ½" x 16 gauge round, notched & welded
• Chain:
       3/16" x 32" galvanized proof coil with 3/16" quick link
• Hinge:
       ¾" x 11 ¼" adjustable L-bolt
• Paint:
       Baked on powder coat paint
• Weight (in pounds):
       4' - 33, 6' - 45, 8' - 55, 10' - 67, 12' - 78, 14' - 90, 16' - 98
• Steel:
       High-tensile 58,000 psi tubular steel
• Warranty:
       1 year

Highlighted Features & Advantages

• Square corners for livestock safety
• Economical but durable 16 gauge rails for light confinement
• Strong 14 gauge posts
• Balanced gate without weak spots
• Secure latching chain
• Long lasting L-Bolt hinges

Suggested Applications

• Horses in light confinement
• Riding arenas
• Driveways
• Pastures
• Deer, sheep, goats and other exotics



Resources:

General Duty Gate Info Sheet and Parts List
